AI Vision Cuts Solder‑Joint Defects in Half for Small Electronics Shops
Table of Contents
AI vision slashes solder errors for custom PCB shops
Solder‑joint defects sink products. Even one bad joint can kill a board and a brand. Manual visual checks once ruled this step. Slow. Fatiguing. Easy to miss hairline cracks.
“It’s like having an extra pair of eyes. The AI flags any solder that looks off. We used to do this all manually. now one person with the AI can check twice as many boards with higher accuracy.” — owner, interview with Make: magazine
That comment sums up why tiny shops now copy what big factories started years ago: computer vision plus deep learning.

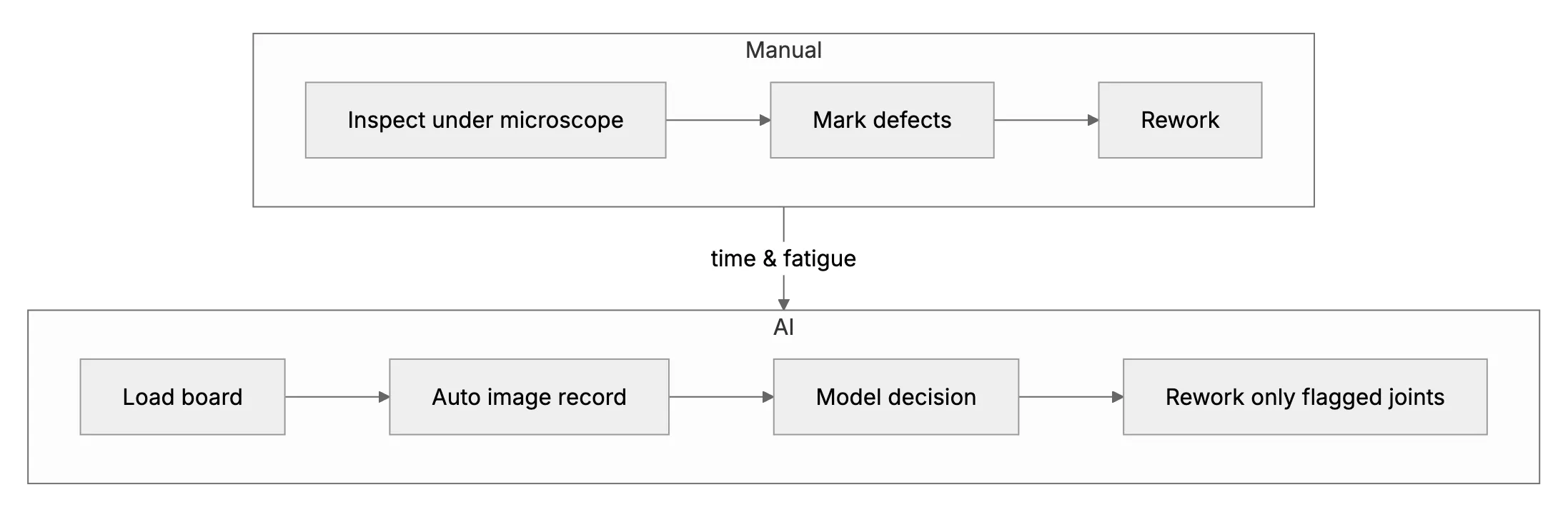

Why computer vision beats the loupe
- Looks at every joint, not sample lots.
- Never tires, so false negatives fall.
- Logs images for traceability.
- Feeds data back to paste‑printing and placement to fix root causes fast.
A 2025 research team showed a deep‑learning detector reaching production‑line deployment with strong accuracy on real boards . A separate important review found vision plus AI now rivals X‑ray for speed while costing less to run .
Hardware you need
Most shops start with a mid‑range 18‑20 MP industrial camera, telecentric lens, and ring light. Mount on a small gantry or repurpose the pick‑and‑place conveyor. A pass‑through cell handles about 200 boards an hour on hobby‑scale runs. Scale with extra cameras or parallel lanes later.

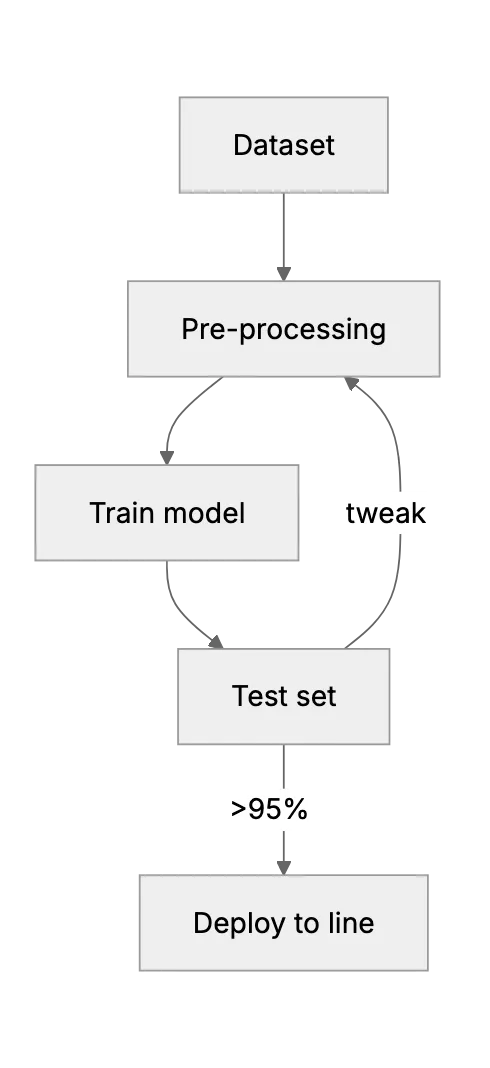

Training the brain
- Collect 1000–2000 joint photos. Tag as good, cold, bridged, insufficient, tombstone.
- Use a lightweight CNN (e.g. ResNet‑18) or off‑the‑shelf AOI AI toolkit.
- Add to with flips, slight blur, brightness jitter.
- Split 80/20 for training and validation. Aim for ≥95% F1 before deployment.
The April 2025 study fused front and side cameras to cut false calls further .
Edge vs cloud inference
Edge box PC: Low latency (<100 ms), no outbound data, $800–$1200.
Cloud: Simple to scale, but high upload bandwidth and security hoops. Most small shops pick edge.

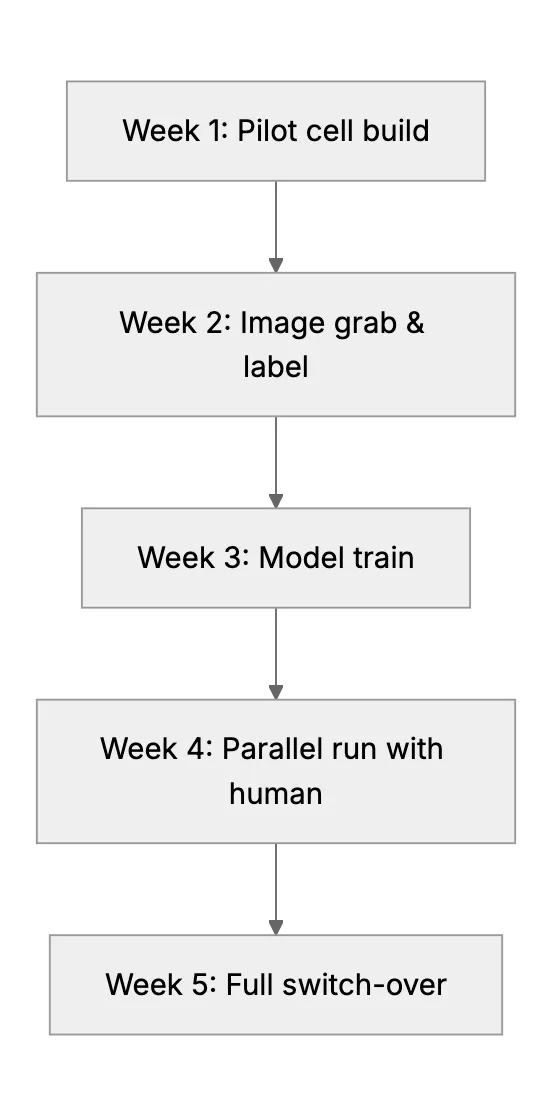

Step‑by‑step rollout
Measuring success
| Metric | Before | After AI |
|---|---|---|
| Boards inspected per hour | 40–50 | ≈100 (2×) |
| First‑pass yield | 92% | 97%+ |
| False rejects | 5% | <1% |
Numbers align with real AOI case studies where defect get away dropped 85% and ROI landed inside one year .
Cost and ROI quick math
A basic vision cell costs about $12k in hardware plus $3k software. If you scrap 1% of a $50 board batch of 1000 units a month, that’s $500 lost. Recovering half means $250/month saved. Add labor saved (one tech hour per 50 boards ≈ 20h) and break‑even can appear in nine to twelve months.
Future upgrades
- 3D optical profilometry for BGA voids.
- Inline X‑ray with AI fusion.
- Tiny transformer models running on the camera itself.
Wrap‑up
AI vision is no longer a toy for giant factories only. Off‑the‑shelf gear, open‑source models, and clear ROI make it a sane step for any custom electronics shop that wants fewer returns and happier clients.
Frequently Asked Questions
1. How many photos do I need to train a reliable solder‑inspection model?
Start with one to two thousand labelled joints. Add more when you see new defect styles.
2. Do I have to buy a 3D AOI machine first?
No. A single 2D camera works for most through‑hole and SMD joints. Upgrade later if BGAs dominate your work.
3. Can I reuse my pick‑and‑place camera?
Sometimes, but depth of field and lighting may not suit inspection. A separate vision head is safer.
4. What accuracy should I target before going live?
Aim for at least 95 percent F1. Lower and you risk too many escapes or false stops.
5. How do I handle grey‑zone calls?
Route anything with low confidence to a human verifier. Most AOI dashboards support this queue.
6. Does AI vision replace X‑ray?
No. X‑ray still wins for hidden joints like bottom‑terminated ICs. Use both when reliability is important.
7. Will the model degrade over time?
Yes, as new board designs appear. Plan for quarterly retraining with fresh images.
