How AI Helps With CAD Design
Computer-Aided Design is at the core of modern product creation. AI tools now help generate and refine designs faster. These tools assist in writing code for 3D models and speed up prototyping. A user on Hacker News shared that they used ChatGPT to generate OpenSCAD code for a basic shape. GPT-4 did a decent job at creating a starter script. This empowers designers to build and edit 3D models in less time.
AI helps to expand creativity. A product designer can ask for a bracket or enclosure in code form and get a working design to tweak. Small hardware startups can benefit. They can have ChatGPT write a drone part script, then 3D-print it hours later. That shortens the design cycle. Below are some steps to use AI for CAD and some tips to get going.

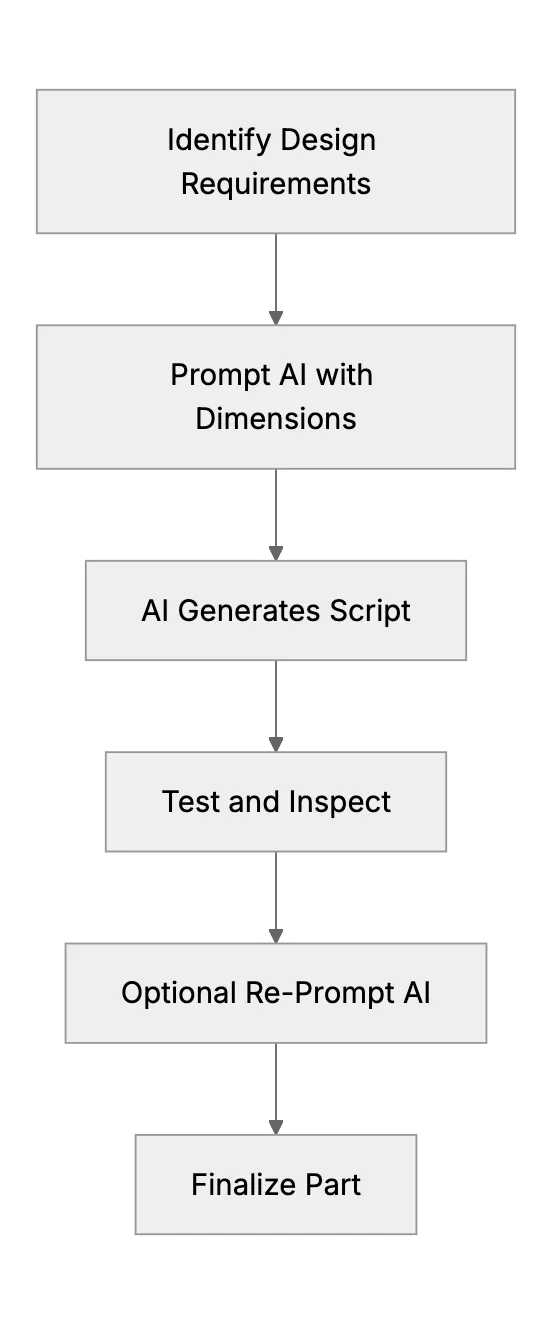

How to Use AI for CAD
1. Define your 3D design concept. Include shape requirements and approximate dimensions.
2. Prompt the AI tool to generate the code. State your requirements clearly. For instance, "Write an OpenSCAD script for a rectangular box with screw holes."
3. Examine the returned script. Adjust parameters for size or shape. Then you can add extra details like chamfers or branding.
4. Export the design. Use standard 3D file formats. Send it to a 3D printer for a quick prototype.
5. Test the printed part. Iterate if needed. You can ask AI to refine the code after seeing results.
Advantages for Hardware Startups
Hardware startups often work with limited resources. AI-driven CAD shortens design time. They skip the guesswork. They get a baseline model which they can modify. That means faster prototypes. This speed is important for new product launches.
Many of these startups use open-source CAD tools. They rely on scripts like OpenSCAD. AI can provide code blocks to begin with. Then they manually refine them. This teamwork saves time. Large companies also see potential. AI can reduce repetitive design tasks and free up designers to look at new ideas.
Future Outlook

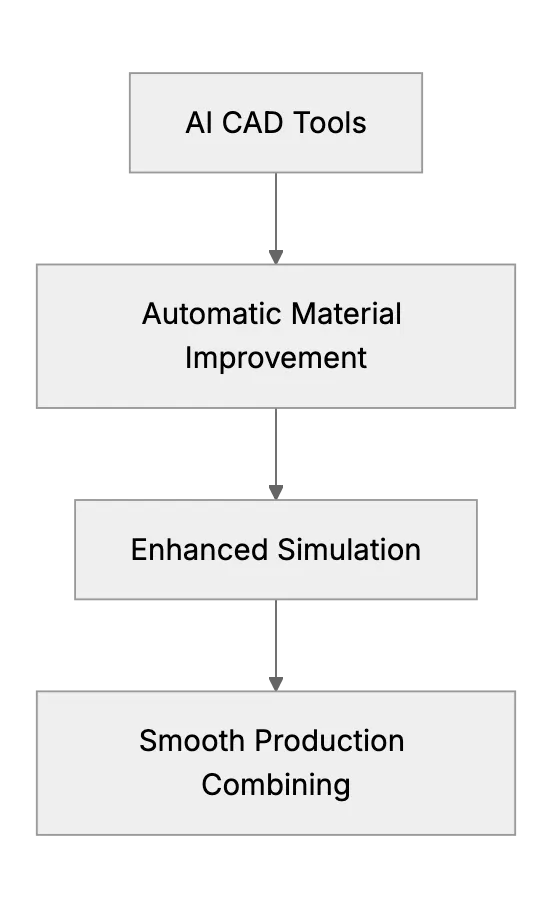

CAD will keep advancing with AI. Designers will experiment more. New materials and methods will appear. AI might learn constraints from material specs and update designs automatically. That will push quick iteration and reduce errors. We can expect smoother combining with production systems soon.
Frequently Asked Questions
1. Does AI replace CAD designers?
AI only assists with scripts and ideas. Designers still control and finalize designs.
2. Which AI tool helps generate CAD code?
Tools like ChatGPT can create OpenSCAD or other CAD script for basic shapes and models.
3. How can I refine the AI-generated CAD code?
Review the script. Adjust dimensions or add details. AI can also update the script based on your feedback.
4. Is 3D printing necessary after generating code?
3D printing is not required. But a print helps validate the design if you need a physical prototype.
5. Can AI handle complex assemblies?
AI helps with single parts or small assemblies. Larger or highly complex designs need extra manual input.
6. Do I need coding skills to use AI for CAD?
Basic understanding of CAD helps. But many AI tools guide the user through prompts without deep coding.
7. Can AI integrate with other manufacturing software?
Yes. Some AI solutions export designs that can work with CNC or injection molding tools.
