Decision Support System Architecture. Components and Combining Explained
Decision Support Systems help people make quick, data‑based moves. A clear picture of the inner build is key for architects, CIOs, and buyers. This guide walks through each layer, points out common links to other apps, and shows where risks hide.
High‑Level Layer Map
1. Data Sources & Storage
Data flows in from ERP, CRM, IoT sensors, log files, and public APIs. A warehouse or data lake stores time‑series and history. OLAP cubes or column stores sit on top for fast slices and pivots. OLAP pre‑calculates so reports load fast .
Key Checks
- Pick storage built for read‑heavy jobs.
- Separate analytics load from live transaction DB to avoid slow screens.
- Plan growth early because data volume doubles fast.
2. Data Combining & Management

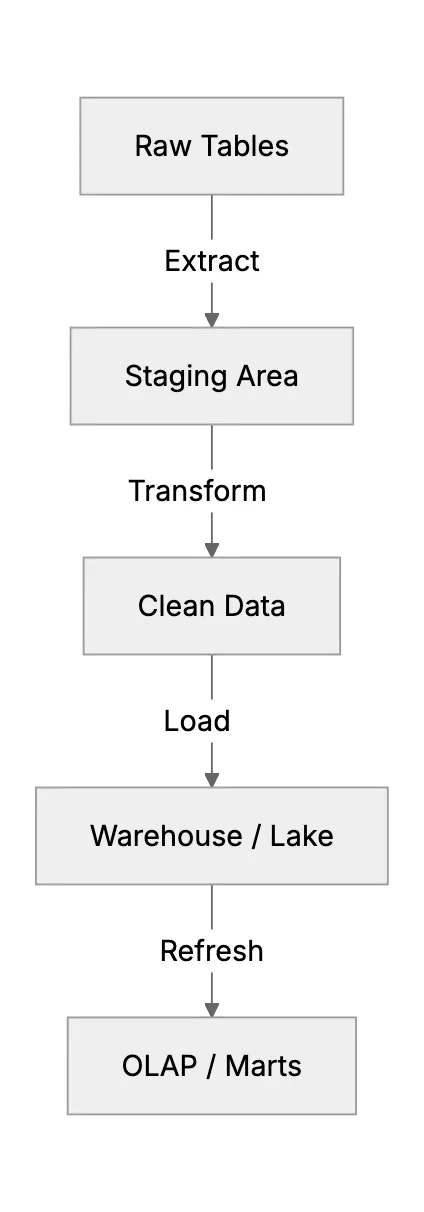

ETL or ELT pipes pull raw bits, clean them, and align keys. This step breaks data silos. As one engineer wrote, a DSS “integrates data from multiple sources, cleanses and organizes it for analysis… using databases, data warehouses, or data lakes to store and manage data” .
Tip
Push heavy transforms close to storage to cut network use. Use schema‑on‑read in lakes when rules change often.
3. Model / Analytics Layer
Here the engine finds patterns. Some shops keep it simple with SQL rules. Others run Python stats, R scripts, or cloud ML. A common Reddit summary notes that a DSS “incorporates models and algorithms… from simple statistical techniques to complex improvement models” .
Keep models versioned. Store run logs for audit. Use GPU or scalable compute when data size jumps.
4. Knowledge Base / Business Rules (optional)
Rule sets and heuristics sit here. They let experts encode policy, safety limits, or pricing caps. Many industries need this for compliance.
5. User Interface Layer
Dashboards, mobile apps, voice bots. The UI turns dense numbers into clear charts. Let users tweak inputs and rerun models. Push alerts to Slack or email when thresholds fire.
Combining Points
DSS rarely lives alone. It reads orders from ERP, pulls tickets from CRM, and can push ideas back as flags or tasks. Yet linking old and new gear is tough. A Sigma Software piece notes “DSS combining has inherent challenges… data source and nature, customization, and compatibility issues with pre‑existing heritage systems” .
Best Moves
- Use middleware or an ESB to hide protocol gaps.
- Pick APIs that follow open standards (REST, gRPC, GraphQL).
- Test on a copy of live data before full cut‑over.
Scalability & Performance
Separate compute from storage. Batch heavy jobs during low traffic. Cache repeat queries. Scale out horizontally when logs show CPU near 70 percent.
Security & Privacy
Encrypt data at rest and in flight. Add role‑based access so only cleared teams see certain forecasts. Keep audit trails.
Real‑Life Snapshots
- Manufacturing – Sensors feed temps to a warehouse. A model predicts motor failure. A dashboard shows red when risk spikes. Maintenance plans a swap before downtime.
- Retail – POS and e‑commerce orders merge nightly. Models rank items for promo. The CRM gets the list for email sends.
- Healthcare – Lab results and patient history flow to a DSS. Rules flag drug exchanges. Doctors see alerts in their EHR screen.
Takeaway
A DSS is not magic. It is a stack of simple parts: data in, clean, model, and share. Plan each link with growth, security, and clear hand‑offs in mind. Do this and the system will guide users with speed and trust.
Frequently Asked Questions
1. What is the first step when designing a DSS?
List all data sources, then check storage fit and volume.
2. Do I need a data warehouse and a data lake?
Use a warehouse for structured history. Add a lake for raw or semi‑structured feeds.
3. How often should ETL run?
Daily is common. Real‑time CDC works when decisions need fresh numbers.
4. Can small firms skip OLAP cubes?
Yes if queries are light. Add cubes when joins slow down.
5. Where does AI fit?
AI models live in the analytics layer. They use the same cleaned data.
6. How do I secure sensitive forecasts?
Encrypt data, enforce RBAC, and log every access.
7. What is a quick win for heritage combining?
Expose key tables as REST endpoints using a small middleware.
